Acoustic Kitchen Fans & Inverter - Three Phase Pack

Ventilation Ducting  | Fans & Actuators | Fans | Acoustic Cabinet Fans for Kitchens |  Acoustic Kitchen Fans & Inverter - Three Phase Pack



Acoustic Cabinet Fans for Kitchens

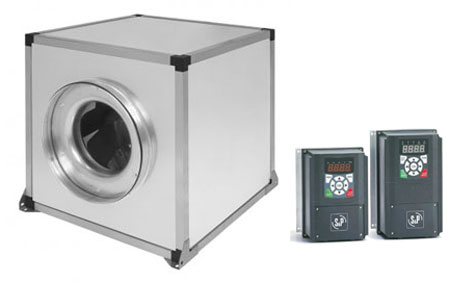

New Acoustic Kitchen Fan & Variable Frequency Inverter Package.

Aimed to simplify the installation of three phase fans within buildings wired for solely single phase electrics, the CVAT acoustic cabinet fan has been packaged with the correct VFD (variable frequency inverter drive) in one product, and at a great price. The simplified wiring and no nonsense approach makes this an excellent choice for commercial kitchen applications.

Three year warranty included (fan installed and operated within the manufacturer's guidelines).

Fans are manufactured from aluminium profiles and double thickness side panels internally lined with 25mm thick fireproof fiberglass acoustic insulation.

Circular duct connection flange on both inlet and outlet. Incorporates direct drive backward curved centrifugal impeller, manufactured from either aluminium (single phase fans), and steel (three phase models).

Panels are removable allowing fans to be configured for rectangular duct or to create a 90° side outlet configuration for situations in which space is limited.

Inverters are single-phase (1PH) in, three-phase out (3PH)
The Inverter control is designed for continuous operation with the maximum rated current load, (10A or 16A, depending on version) on single phase 230 Volts ~ 50Hz supply.

VFD Inverter Manual...


Please allow up to four working days for delivery.

For further, more detailed information, on this range of fans please visit the page linked below:

Acoustic Cabinet Fans for Kitchens CVAB/T-ND

250mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 1

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1480
Maximum absorbed power (w): 116
Max air volume (M³/h): 1230
Weight: 13kg
Includes 2.2kW 230v VFD Inverter

506.50 (Excluding VAT at 20%)





Quantity:


250mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

315mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 2

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1460
Maximum absorbed power (w): 169
Max air volume (M³/h): 1830
Weight: 13kg
Includes 2.2kW 230v VFD Inverter

553.70 (Excluding VAT at 20%)





Quantity:


315mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

355mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 3

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1430
Maximum absorbed power (w): 251
Max air volume (M³/h): 2660
Weight: 30kg
Includes 2.2kW 230v VFD Inverter

672.70 (Excluding VAT at 20%)





Quantity:


355mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

400mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 4

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1445
Maximum absorbed power (w): 438
Max air volume (M³/h): 3850
Weight: 32kg
Includes 2.2kW 230v VFD Inverter



765.40 (Excluding VAT at 20%)





Quantity:



People who bought this item also bought:
1. Filter Boxes (Ref: FILB)
400mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

450mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 5

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1465
Maximum absorbed power (w): 747
Max air volume (M³/h): 5620
Weight: 46kg
Includes 2.2kW 230v VFD Inverter

806.30 (Excluding VAT at 20%)





Quantity:


450mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

500mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 6

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1465
Maximum absorbed power (w): 810
Max air volume (M³/h): 6100
Weight: 58kg
Includes 2.2kW 230v VFD Inverter

838.50 (Excluding VAT at 20%)





Quantity:


500mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

500mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 7

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1470
Maximum absorbed power (w): 2093
Max air volume (M³/h): 7900
Weight: 58kg
Includes 2.2kW 230v VFD Inverter

961.60 (Excluding VAT at 20%)





Quantity:


500mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

560mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 8

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1470
Maximum absorbed power (w): 3234
Max air volume (M³/h): 11100
Weight: 82kg
Includes 2.2kW 230v VFD Inverter

1,013.40 (Excluding VAT at 20%)





Quantity:


560mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack

630mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
CVAT PACK 9

230/400v, IP55, 4 Pole
Class F, Thermal protection
Working temp. -20°C - +40°C
Speed (r.p.m): 1470
Maximum absorbed power (w): 3234
Max air volume (M³/h): 14640
Weight: 113kg
Includes 3.7kW 230v VFD Inverter

1,586.90 (Excluding VAT at 20%)





Quantity:


630mm dia Acoustic Cabinet Fan & Inverter - Three Phase Pack
