Contra Rotating Cased Axial Fans - Single Phase

Ventilation Ducting  | Fans & Actuators | Fans | Cased Axial Flow Fans | Contrafoil Contra-Rotating Cased Axial Fans |  Contra Rotating Cased Axial Fans - Single Phase



Contrafoil Contra Rotating Cased Axial Fans - Info

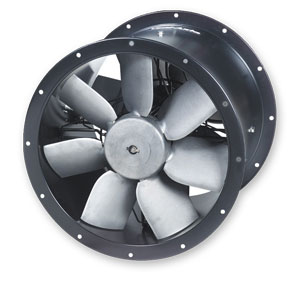

Cylindrical cased axial fans fitted with 2 contra-rotating complementary die-cast impellers (allows the duplication of pressure with the same air volume). Manufactured from high grade rolled galvanised steel. Fans are protected against corrosion with a cataforesis primer and black polyester paint finish.
All models are supplied with a pre-wired junction box located on the outside of the fan casing.

Available with single or three phase motors (this page lists the single phase models).

Contra rotating cased axial fans are general purpose fans designed to move large volumes of air in medium pressure systems. This often means systems with a longer run of duct. For performance curves and other, more detailed information, on this range of fans please visit the page linked below:

Contrafoil Contra rotating Cased Axial Fans TCBBx2/TCBTx2

Please allow up to four working days for delivery.

450mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase
TCBBx2/4-450

230v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1420
Max air volume (M³/h): 7430
Weight: 42kg
Speed controllable. Use REB6 speed controller

575.00 (Excluding VAT at 20%)





Quantity:


450mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase

500mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase
TCBBx2/4-500

230v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1425
Max air volume (M³/h): 9950
Weight: 50kg
Speed controllable. Use REB10 speed controller

611.30 (Excluding VAT at 20%)





Quantity:


500mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase

560mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase
TCBBx2/4-560

230v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1425
Max air volume (M³/h): 14150
Weight: 66kg
Speed controllable. Use REB16 speed controller

762.10 (Excluding VAT at 20%)





Quantity:


560mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase

630mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase
TCBBx2/4-630

230v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1400
Max air volume (M³/h): 16560
Weight: 80kg
This model is not speed controllable.

973.70 (Excluding VAT at 20%)





Quantity:


630mm Dia Contrafoil Contra Rotating Cased Axial Fan - Single Phase
