Contra Rotating Axial Fans & Inverter - 3 Phase Pack

Ventilation Ducting  | Fans & Actuators | Fans | Cased Axial Flow Fans | Contrafoil Contra-Rotating Cased Axial Fans |  Contra Rotating Axial Fans & Inverter - 3 Phase Pack

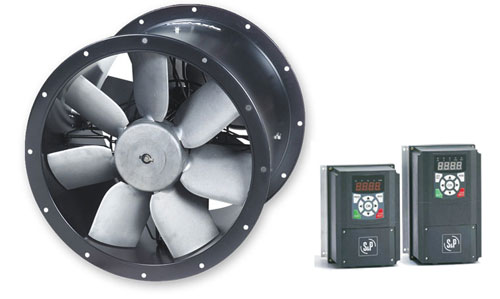

Contrafoil Contra Rotating Cased Axial Fans - Pic

Contrafoil contra rotating fans packaged with the correct VFD (variable frequency inverter drive) in one product, and at a great price.

Three year warranty included (fan installed and operated within the manufacturer's guidelines).

Cylindrical cased axial fans fitted with 2 contra-rotating complementary die-cast impellers (allows the duplication of pressure with the same air volume). Manufactured from high grade rolled galvanised steel. Fans are protected against corrosion with a cataforesis primer and black polyester paint finish.
All models are supplied with a pre-wired junction box located on the outside of the fan casing.

Inverters are single-phase (1PH) in, three-phase out (3PH)
The Inverter control is designed for continuous operation with the maximum rated current load, (10A or 16A, depending on version) on single phase 230 Volts ~ 50Hz supply.

VFD Inverter Manual...

Contra rotating cased axial fans are general purpose fans designed to move large volumes of air in medium pressure systems. This often means systems with a longer run of duct. For performance curves and other, more detailed information, on this range of fans please visit the page linked below:

Contrafoil Contra rotating Cased Axial Fans TCBBx2/TCBTx2

Please allow up to four working days for delivery.

450mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack
TCBTx2/ PACK 1

230/400v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1430
Max air volume (M³/h): 7250
Weight: 42kg
Includes 2.2kW 230v VFD Inverter

£775.70 (Excluding VAT at 20%)





Quantity:


450mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack

500mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack
TCBTx2/ PACK 2

230/400v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1390
Max air volume (M³/h): 9400
Weight: 50kg
Includes 2.2kW 230v VFD Inverter

£828.30 (Excluding VAT at 20%)





Quantity:


500mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack

560mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack
TCBTx2/ PACK 3

400v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1420
Max air volume (M³/h): 14080
Weight: 66kg
Includes 2.2kW 230v VFD Inverter

£963.20 (Excluding VAT at 20%)





Quantity:


560mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack

630mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack
TCBTx2/ PACK 4

400v, IP65, 4 Pole
Class F, Thermal protection
Working temp. -40°C - +70°C
Speed (r.p.m): 1445
Max air volume (M³/h): 17810
Weight: 80kg
Includes 3.7kW 230v VFD Inverter

£1,107.50 (Excluding VAT at 20%)





Quantity:


630mm Dia Contrafoil Contra Rotating Cased Axial Fan & Inverter - Three Phase Pack
