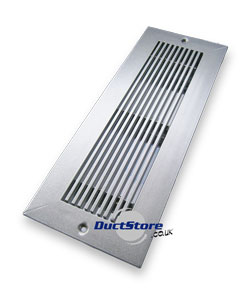

Floor Bar Grilles

Ventilation Ducting  | Ventilation Grilles & Louvres | Grilles & Louvres Manufactured to Order | Linear Bar Grilles |  Floor Bar Grilles



Linear Bar Grilles info

Grilles in this section are manufactured to order to customer requirements. Delivery is typically 5-7 working days.


Linear bar grilles for heating and cooling ventilation systems. These grilles are reinforced for installation in floors. Suitable for both supply and return applications. Grilles are high quality precision manufactured with mitred corners.

Deflection bars are fixed and are parallel to longest dimension. Available frames are 25mm standard flange, or flush fit without flange. Available in appliance white and silver aluminium powder coated finishes. Alternatively they can be be supplied in mill finish. Mill finish is unfinished aluminium; this may mean they show evidence of the manufacturing process such as light abrasions/scuffs etc.

Two core styles are available as depicted in the cross-sectional diagrams. These core styles can be selected on the following pages.

Click here to download the manufacturer's brochure.

Linear Bar Grilles - Width Selection Please use the drop-down menu below to select the width of the bar grille required as denoted in the drawing to the left. Length can be selected on the following pages.

Please note that the sizes stated refer to grille neck size and (if selected) do not include the flange. For overall size - including the flange - add 46mm. For flush fit grilles, without flanges, the sizes refer to the overall size of the grille.

Width
